Transparent FLexible LED Video Curtain Display for Mobile Show

90% weight saving,



90% installation time saving, fast installation, fast demolition,


90% transport cost saving,


Totally 90% project cost saving, one-time invest, long term benefit.

1. Brief introduction:


Flexible LED Strip Screen is composed of flexible rubber strips in which the high illumination SMD LED is embedded, the controller and power is connected in the aluminum box which is hung on the top of the screen, so that it can be rolled and folded freely like a paper, it is lightest LED display with high rate transparent, high rate waterproof

2. The main characteristic of the Flexible LED Strip Screen:


Ultra-light weight, slim body, which is suitable for the place that requires the weight strictly.

Easy and fast installation, demolition, which is suitable for rental and instant project.

Soft, flexible, which is suitable for any irregular place like arch, cylinder, rectangle.

Transparent and wind-proof, so lighting and wind can go trough the body of the screen.

Alternative controlling system: Video synchronous and off-line controller is alternative.

Waterproof: the ingress protection level can reach to IP 65.

High refresh rate, it can achieve 68 billion colors and 5000 - 23000 HZ refresh rate, so there is not any strobe and water ripple effect through the video VCR, it is very important for stage display application.

High brightness: the highest brightness can reach to 6000 nits, it can be used under the sun shine environment.

Beautiful and safe package：move and transport easily with low cost.


3. Application:


It is widely applied to stage background, DJ lighting design, indoor and outdoor advertisement, concert, theatre, TV studio, live show, shopping mall, pageant etc.

4. Composition of Flexible LED Strip Screen:

7. Application Example:


A. France theatre:

B. Outdoor vehicle:

For more detail info, please contact:
Fisher
mail/ MSN: yuchao622@hotmail.com
skype: fisher201223
tel: 0086-18675566878

Transparent Flexible LED Curtain Display

three dimension and high resolution global LED sphere display for stage, DJ, event and Ads

Interesting LED screen product: high resolution LED sphere screen

Item:pitch 6mm SMD 3-in-1

Diamerter:1m

Resolution:348879dots

Software:LEDSHOW

Weights: 65KG

more details, please consult with Fisher
http://www.ledaliveshow.com/

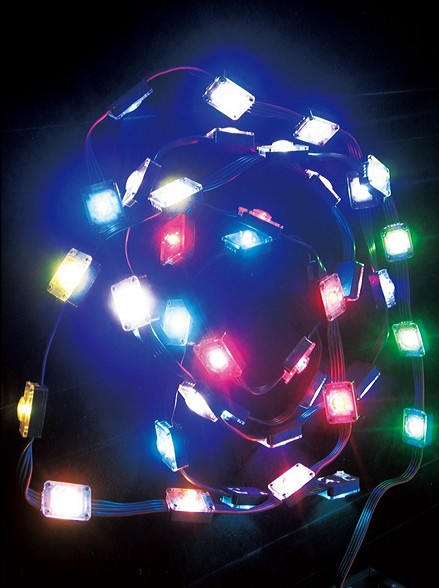

FLex LED Dot String Screen for Building and Architecture Lighting Design

with slim body, high intensity, full-clor LED nodes

1. Brief introduction:
Flex Dot is designed for extrairdinary effects and expansive installations without the constraints of fixure size, shape, or space, it allows LED video displays to break free from the flat, rectangular format and assume virtually any form. Each string consists of 40 (or 32) individually addressable LED nodes, with high light output, which affords long distance view for buidling,  architucture, perimeter lighting, large scale signature, and building-covering
video displays.

Standard and customized lengths and dots spacing

A string of FlexDOTs can in fact extend to 600 pixels, more than fourfold (four times) as many as competitive products. The string can be cut into any desired length or number of pixels. Flex Dots are available with several different pitch size, the standard size we have are P75, P100, P150, P200, which can support virtually any lighting video design. Custom pixel spaced strings are available to order.

Intelligent easy controller
The FlexDOT concept is simple ¨C individually controlled, intelligent, full color pixels mounted on a flexible cable. Each pixel (dot) consists of a bright RGB LED driven by its own processor and individually addressable for independent control of color, special effects, and animation. Pixels can be arranged as needed and later mapped to the image using pixelmapping software.
it need not special hardware for support, any PC and laptop can control it. And the independent controller with CF memory card can support the system to display the video automatically.

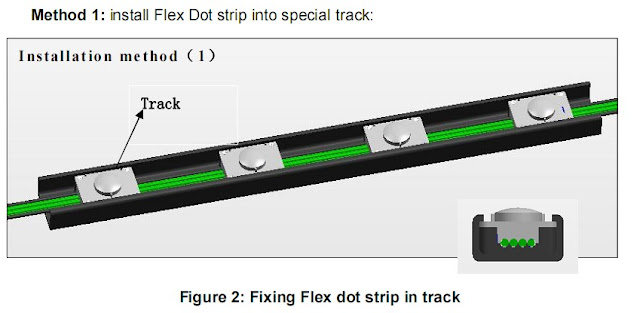

Easy to install, set up and drive FlexDOT is light and requires substantially less supporting hardware than conventional LED display solutions. The flexible cable mounting gives a high degree of creative freedom and an IP66 rating in combination with a wide operating temperature range of -20 to +50means that it can be used in virtually any environment, even outdoors.



Design flexibility
This flexible, lightweight video solution is efficient and long-lasting and can be arranged into nearly any form to provide designers unlimited options to
enhance interior and exterior spaces.

Features   :

Can assume any form for creative freedom

Individually controllable pixels

Independent control of color, special effects and animation

Very bright, 2.5 cd per pixel

75mm,100 mm 1500mm and 200 mm or customized pixel spacing

Max 600 pixels per string

IP65 for use indoors or out

Efficient and long-lasting

Perfect for stage sets, clubs, retail, outdoor environments

more for detail info, please contact Fisher

mail/MSN: yuchao622@hotmail.com

skype: fisher201223

tel: 0086-18701325285

the video of soft LED display, flexible LED curtain

pitch 20mm soft LED display

size: 3.2m height, 7.68m width


mail/MSN: yuchao622@hotmail.com
skype; fisher201223

FLEXIBLE LED DISPLAY

Have you ever seen the LED displayer that can be folded, curved and transformed and extended unlimited?
We have developed a new kind of product—Flexible LED displayer.
It is our patent product.
It may be the product that not found in the world now.
It is very good to be used for a backdrop in vocal concerts, the studio halls in television station, singing and dancing halls, expositions and advertising.
I recommend it to you now and I hope you will love it.

Flexible, Foldable, Portable, Light weight...




With mature technology, with three years experience, with professional service,



most importantly, with largely cut down price,



flexible LED curtain is the best choice now !
